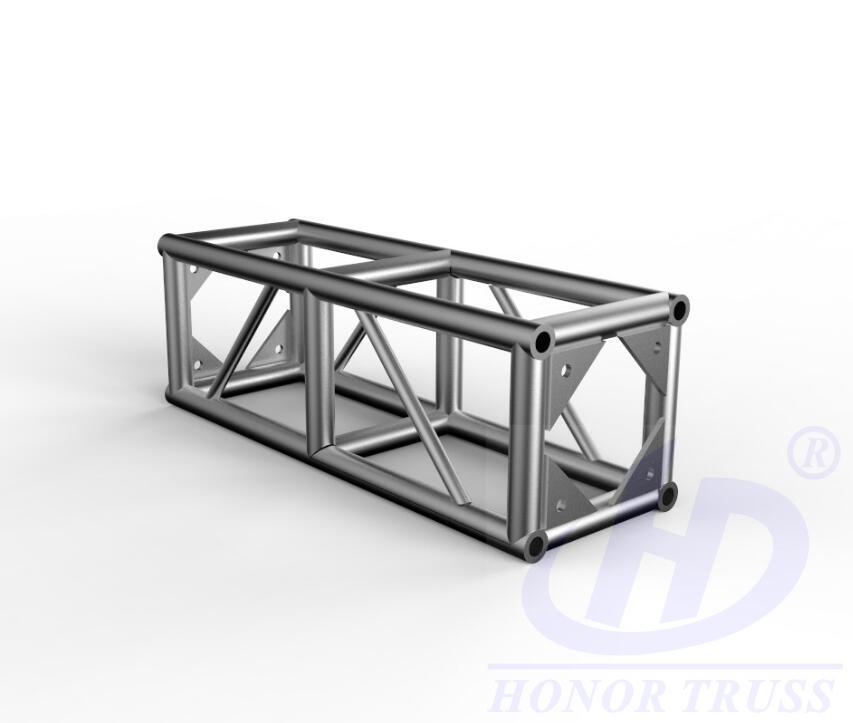

BQ-35 350*350mm screw/bolt heavy duty truss for outdoor event
Features
1.BQ-35 Bolt Truss ,we also called Lighting truss or stage truss ,truss systems which mainly are used to set up the portal frames, light stage ... in different application
2.BQ-35 is using the 3mm wall thickness in the main tube which assures durability and extra strength.
3.BQ-35 with 12mm thick aluminum plate as well as 4 bolt holes sized M16
4.Designed for high frequency usage or installations, which demands higher loading.
Facts
TüV approved
Also available in any non-standard length and shape
Tolerance free conical connector system
Wall thickness of 3 mm for 50 mm main tubes
BQ-35 is also available as a Tower Truss (BQ-35)
TECHNICAL SPECIFICATIONS
Height
350 mm / 13.78 in
Width
350 mm / 13.78in
Main Tube
50 x 3 mm / 1.97 x 0.12 in
Braces
50x 2 mm / 1.97 x 0.08 in
Weight
~9.2 kg/m /
Material
International-6082 T6
Connection
BOLT:M16

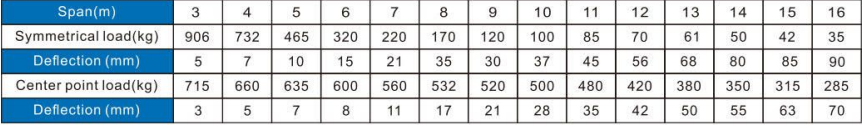

Loading charts
