heavy duty type 300x400mm Aluminum bolt truss
  • heavy duty type 300x400mm Aluminum bolt truss
  • heavy duty type 300x400mm Aluminum bolt truss

heavy duty type 300x400mm Aluminum bolt truss

No.BQ-3040
It is mainly used for the construction of amusement equipment and competitive structures, and is often used for the construction of stage performances. Loved by European and American customers.
  • heavy duty type 300x400mm Aluminum bolt truss

Description

Do you want to purchase customized square screw truss 350*350mm from one of the professional event tent aluminum truss manufacturers and suppliers? Then you should contact us immediately.

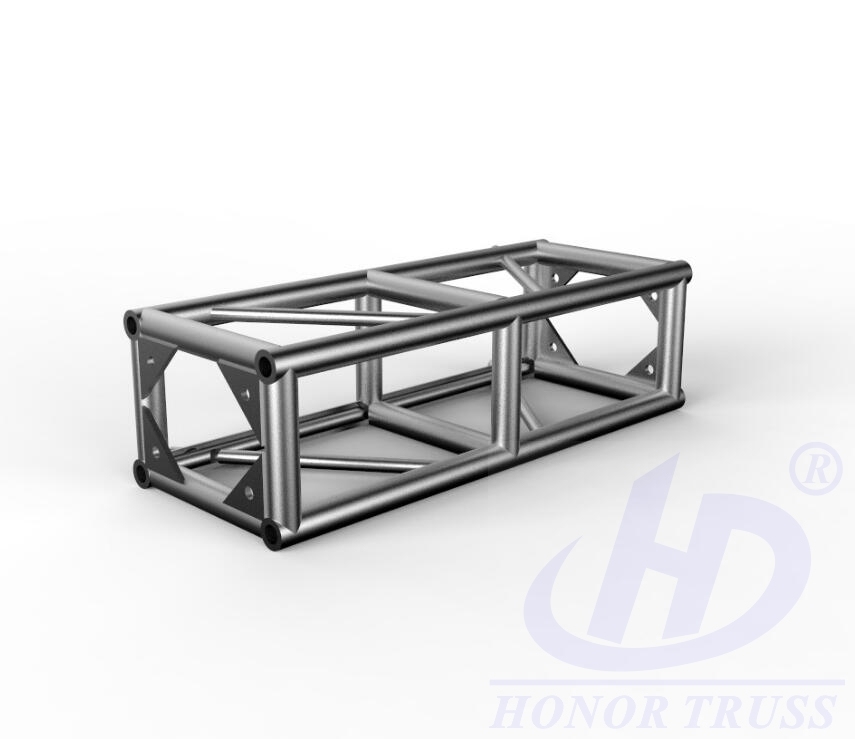

MQ-3040 300*400mm screw/bolt heavy duty truss for outdoor event



Features

1.MQ-3040Bolt Truss ,we also called Lighting truss or stage truss ,truss systems which mainly are used to set up the portal frames, light stage ... in different application

2.MQ-3040 is using the 3mm wall thickness in the main tube which assures durability and extra strength.

3.MQ-3040 with 12mm thick aluminum plate as well as 4 bolt holes sized M16

4.Designed for high frequency usage or installations, which demands higher loading.



Facts

TüV approved

Also available in any non-standard length and shape

Tolerance free conical connector system

Wall thickness of 3 mm for 50 mm main tubes

MQ-3040 is also available as a Tower Truss (MQ-3040)



TECHNICAL SPECIFICATIONS

Height

300 mm / 11.81 in

Width

400 mm / 15.75in

Main Tube

50 x 3 mm / 1.97 x 0.12 in

Braces

50x 2 mm / 1.97 x 0.08 in

Weight

~9.2 kg/m /

Material

International-6082 T6

Connection

BOLT:M16


Loading charts

Download
