Product description
1.CS-40 can bear excellent load capacity as its free spans of 16m (52.5 feet)
2.CS-40 is using the 3mm wall thickness in the main tube which assures durability and extra strength.
3.Designed for high frequency usage or installations, which demands higher loading.
4.Popular use among rental, touring and exhibition events.
5.Easy to install with the fast connection system.
Facts
TüV approved
Also available in any non-standard length and shape
Tolerance free conical connector system
Wall thickness of 3 mm for 50 mm main tubes
CS-40 is also available as a Tower Truss (CS-40)
TECHNICAL SPECIFICATIONS
Height
400 mm / 15.75 in
Width
400 mm / 15.75 in
Main Tube
50 x 3 mm / 1.97 x 0.12 in
Braces
25 x 2 mm / 0.98 x 0.08 in
Weight
~8,5 kg/m / ~6,4 lbs/ft
Pin Position
Diagonal
Material
International-6082 T6
Connection
CS1 - CON

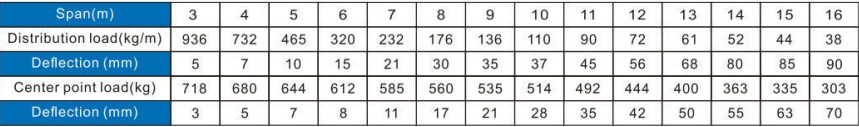

Loading charts
