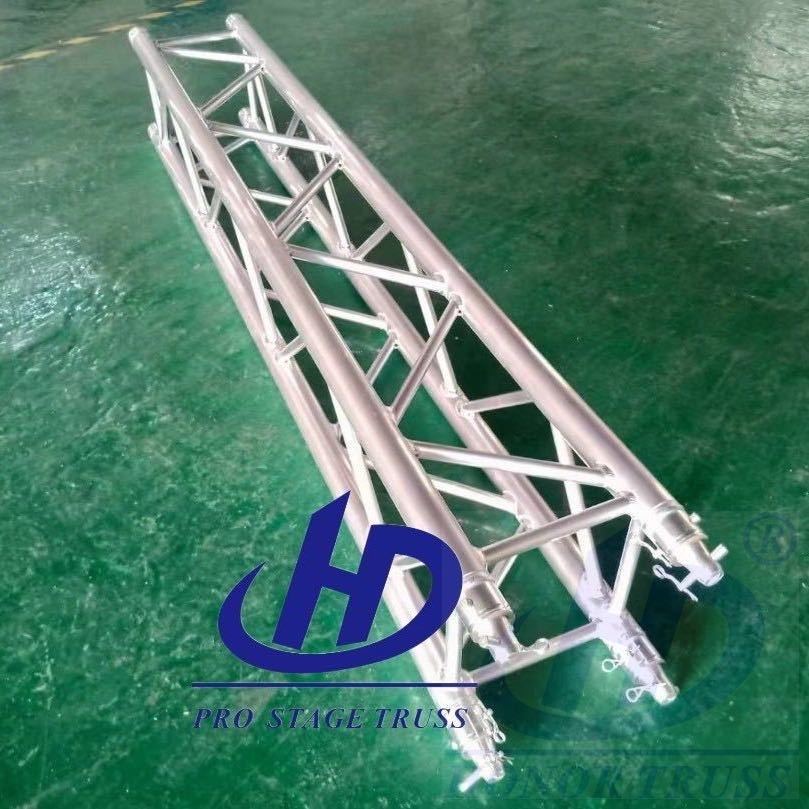

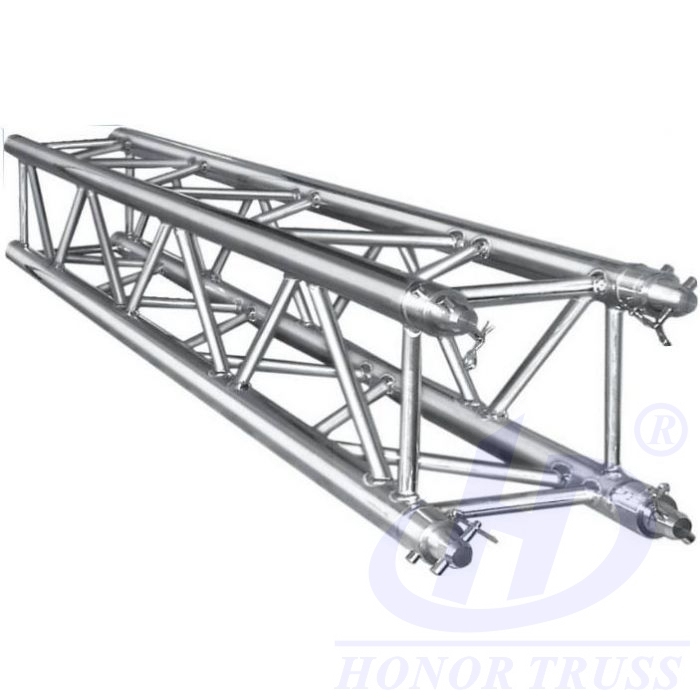

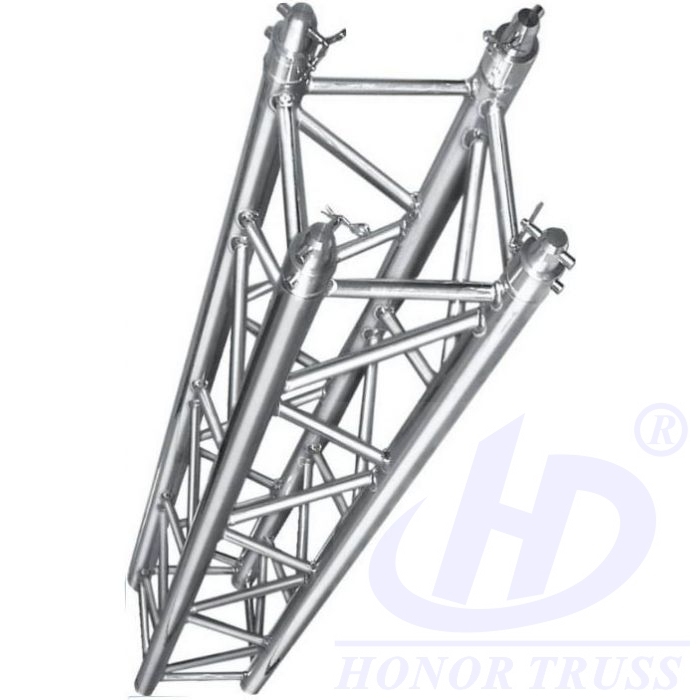

290mm Truss is probably the most widely used truss in the world. Perfect for general use over short runs, 290mm truss is used for DJ / band lighting trusses or small to medium shows where roof height or sight lines are an issue. Superior quality alloy(see below). All 290mm Alutruss use the higher strength 6082 composition. Fast Connect System Using snug-fitting Conical Spigots, Pins and R-Clips, the connection systems eliminates the need for bolts & nuts, saving a lot of valuable time during set-up. The truss comes fitted with conical couplers, spigots and safety pins for joining more pieces of truss. Honortruss manufacturing meet international quality demands.
atures
1.With excellent straight and bending stress resistant, spans up to 14m for lighting Truss .
2.Using the 3mm wall thickness which assures the square truss durability and strength.
3.Global truss F34, Suitable for high load capacity and safe outdoor use.
4.Ideal truss system are available for rental, tour and exhibition companies occasions.
5.Made with the fast connection system, Easy to install and disassemble.
Notice: The CS-29 with 3mm wall thickness, is discontinued as standard stock product but still available on request.
Facts
TüV approved
Also available in any non-standard length and shape
Tolerance free conical connector system
CS-29 is also available as a Tower Truss
TECHNICAL SPECIFICATIONS
Height
290 mm / 11.42 in
Width
290 mm / 11.42 in
Main Tube
50 x 3 mm / 1.97 x 0.12 in
Braces
20 x 2 mm / 0.79 x 0.08 in
Weight
~7.45 kg/m /
Pin Position
Diagonal
Material
International 6082-T6
Connection
CS1 - CON

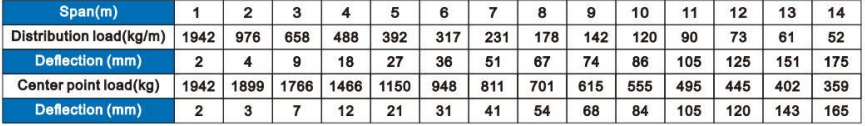

Loading charts
