Do you want to purchase customized square screw truss 400*600mm from one of the professional square screw truss 400*600mm manufacturers and suppliers? Then you should contact us immediately.

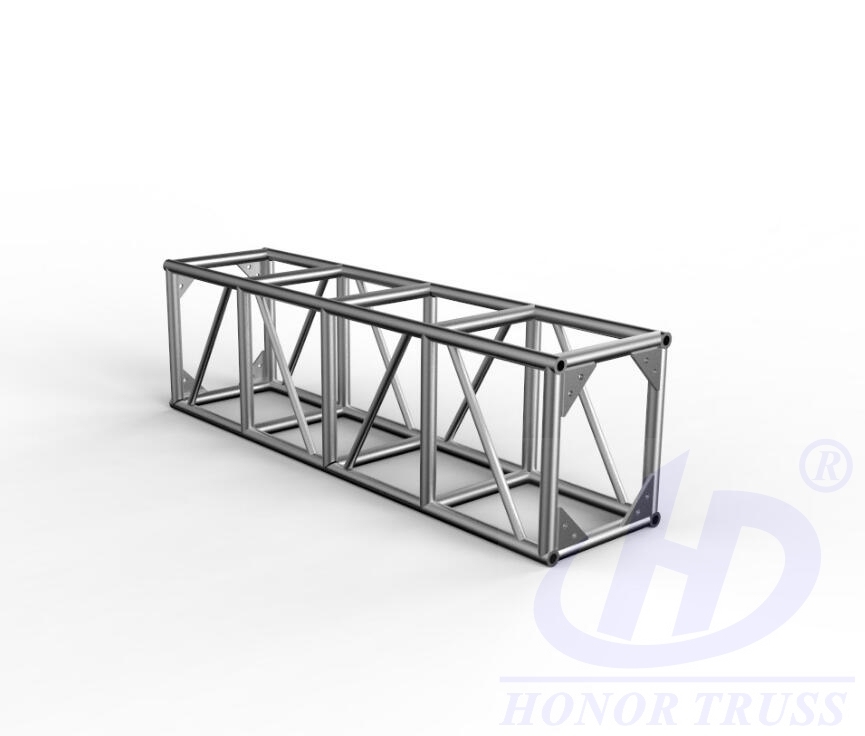

BQ-4060 Factory Price high quality aluminum screw truss for sale
Features
1.Next to the Spigoted Truss offers also the well known plated truss in various sizes.
2.BQ-4060 truss with a high load bearing capacity that lends itself to safe outdoor use, even at a free span of up to 20m (65.6feet) at high load.
3. The trussing systems are used in entertainment, music and corporate events industries as well as by architects and designers
4.Honor truss manufactures the plated truss in their factory in GuangZhou China and slightly upgraded the products to improve user’s friendliness.
5.Transportation damage and guarantees extreme durability. BQ-4060 gives you a much higher load ability than all the available trussing in this size & segment.
6. We can design a truss solution to fit any budget. We also have our own custom color lab which can take your truss design from silver to almost any color of the rainbow call us for pricing and further information
Plated Truss, the number one for professionals!
Facts
More horizontal braces for extra hanging positions
Using standard SAE washers
Comes with high grade bolts
TECHNICAL SPECIFICATIONS
Height
400 mm / 15.75 in
Width
600 mm / 23.62 in
Main Tube
50 x 3 mm / 1.97 x 0.12 in
Braces
50 x 2 mm / 1.97 x 0.08 in
Weight
~12.92 kg/m
Material
International-6082 T6
Connection
BOLT:M16

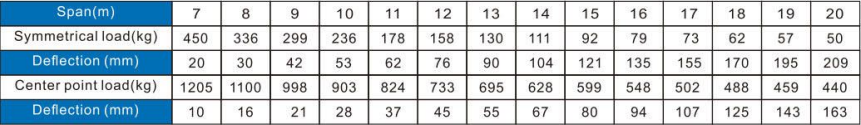

Loading charts
